Used Machine Details: Item #: Image:
IF YOU DON'T SEE WHAT YOU ARE LOOKING FOR HERE, JUST CALL OR eMAIL US. WE MAY KNOW WHERE ONE IS.
TRI Test Research 2011 TR7007 SPI Solder paste inspection New Oct. 2011. Capable of inspecting at speeds of up to 160 cm2/sec, the TR7007 offers ultra-fast solder paste inspection with unmatched repeatability achieved with no maintenance linear motor design.

TE4708
Pemtron TROI-5500HL                               Solder Past Inspection New 2010


SM4727
10' X 10' Lindgren RF Enclosure


SOLD
10X10 Lindgren RF enclosure.  Model 18-2/2-0. Dis-assembled and on pallets.

TE4741
7' X 10' Lindgren RF Enclosure


SOLD
7' X 10' Lindgren RF Enclosure.  Model 14-2/2/0


TE4742
Mirtec MV-3U AOI Machine

SOLD
5 camera desktop AOI TE4733

YESTech YTV-2050



SOLD

5 Camera Inline AOI System. 2 Machines Available TE4732
 Thermotron S-32 Hot/Cold Temp. Chamber

SOLD
For hot/cold temperature cycling. It has a new F4 controller that was install last October and a full calibration was done. The unit is in very good shape for its age.It has seen very little use over last four years and not a lot over its lifetime.  230 volt 1 phase. Manual with machine.

 * Temperature Range:   -68 degrees C to 177 Degrees C

* Temperature Controller:

 * Interior Dimensions:

32 cu.ft.  Length: 38", Width: 38", Height: 38"







TE4353
MVP Supra E AOI

SOLD

Inline AOI with high resolution 5MP camera, full SMT inspection, full solder paste inspection. New

2009, never installed.
TE4305
AirVac DRS20V Rework Station

SOLD

DRS20 KEY FEATURES SUMMARY

CAMERA-BASED BEAM-SPLITTER with adjustable red/green LED's provides outstanding alignment capability; PC provides easy to use, multi-event process control; Single position alignment, placement and reflow eliminates movement of the assembly after alignment; Motorized Z axis provides automated removal and placement.



TE4287

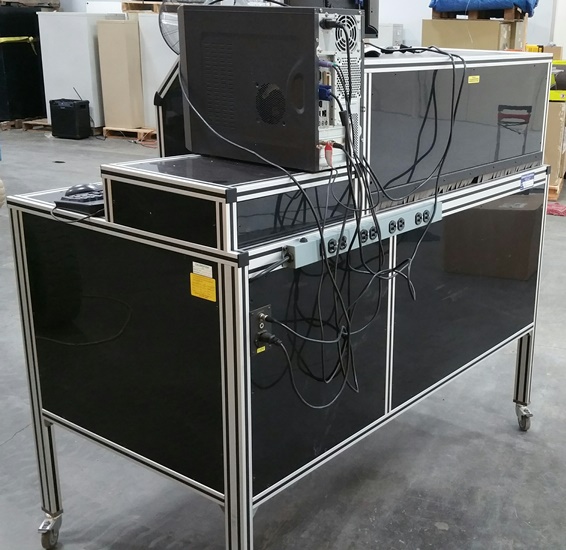

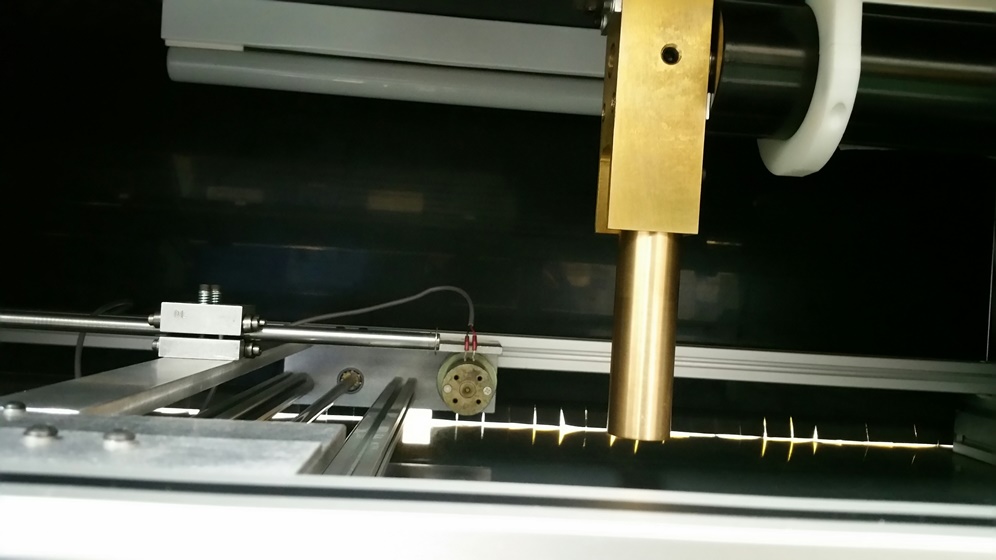

Glenbrook RTX 113-HV/ X-Ray Machine

SOLD


PC Board X-Ray inspection machine. A high performance real-time X-ray inspection system designed for inspection of multi-layer, assembled printed circuit boards, with dense metal BGAs, and recommended for lead free inspection requirements.
SPECIFICATIONS:

50"H x 60"W x 33"D (1270mm x 1524mm x 838.2mm)

Operating Voltage: 120v/220v, 50-60hz

Contrast Resolution: Can resolve .001 gold wire

Spatial Resolution: 20 lp/mm (with MicroTechâ„¢ option, up to 100 lp/mm)

Anode Voltage: 80kV

Anode Current: 150 microamps (internal adjustment)

Focal Spot to Image Plane Distance: 4-6" (101.6mm - 152.4mm)

XRTV Zoom Camera (4X-50X magnification)

Many opttions.





SM4240

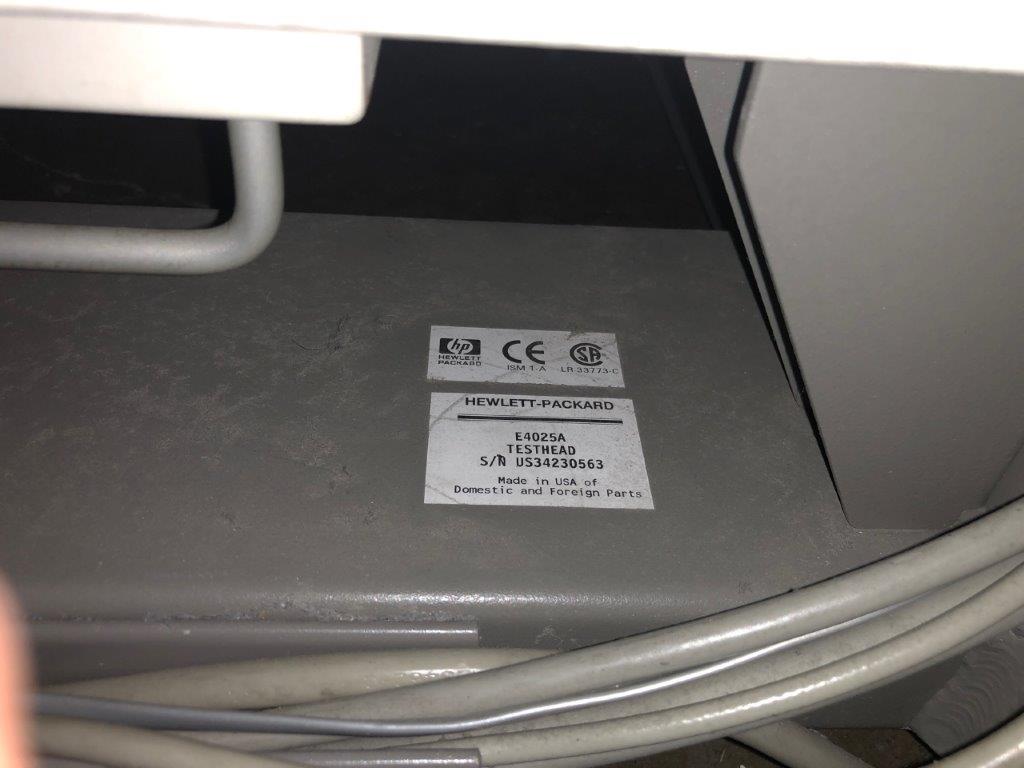

HP 3070 Series II Board Test System

SOLD

HP 3173 Test Ssystem

6 MP/s In-Circuit Test Development

6 MP/s Runtime Performance

HP SimPlate Fixture Generation Software

HP TestJet Technology

HP PanelTest and HP Throughput Multiplier

TE4291

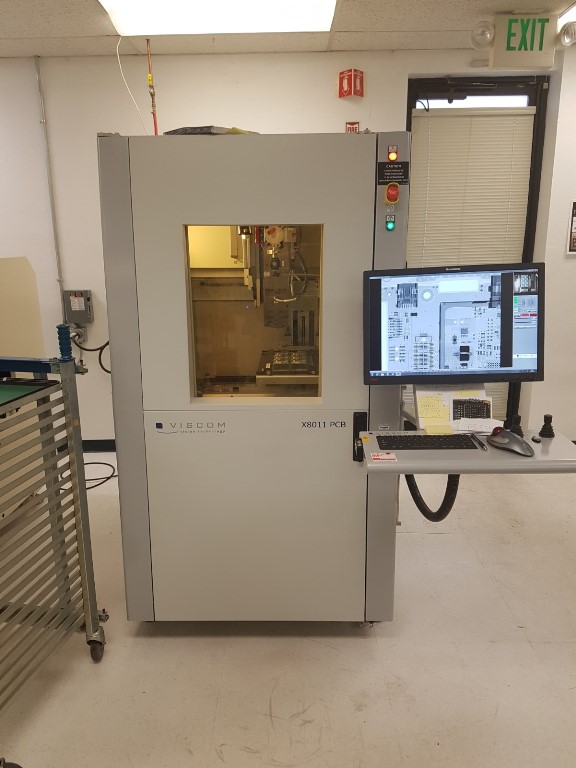

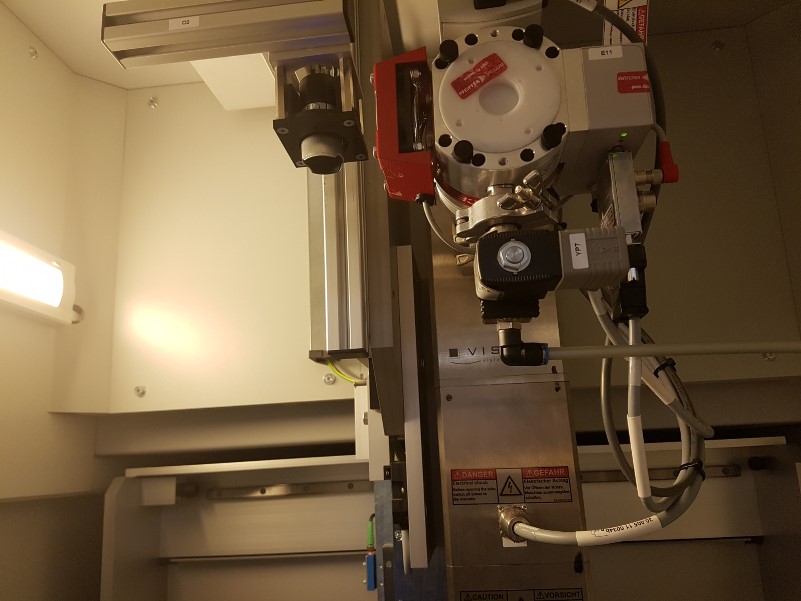

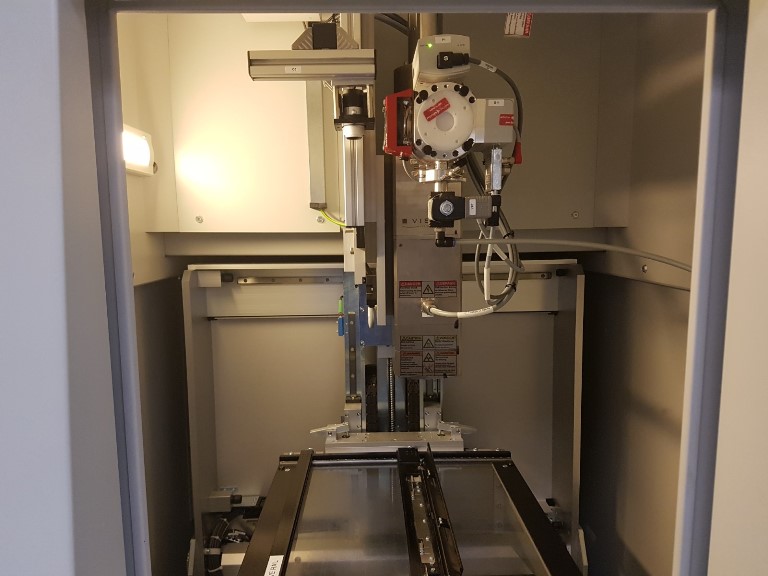

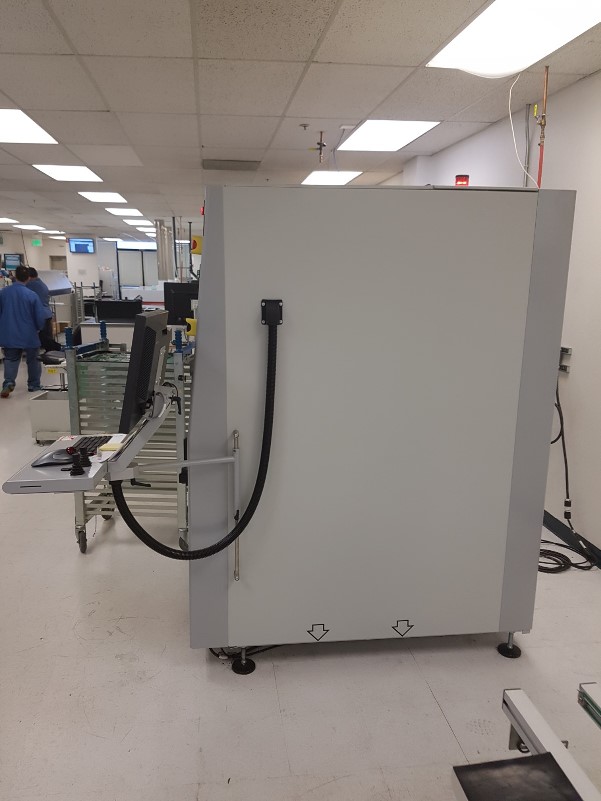

Viscom X8011 PCB Plus Xray




SOLD
X-ray system X8011 PCB plus suited for 2D xray application for manual up  to fully automated offline X-ray inspection. Max. sample size: 460 x 580 mm Max. sample weight: 10 kg. Calibration-Set X8011 XMC/SI. SWL HARAN verification software.



X8011 PCB plus suited for 2D xray applications for manual up to fully automated offline X-ray inspection Max. sample size: 460x580mm Max. sample weight: 10kg System dimensions: w1.050 x d1.470 x h1.900mm Weight: 1.800 kg Basic Equipment: 3-axis manipulation system with object table Horizontal x/y/z-table: positioning range 485x470mm vertical Z-axes: positioning rangeMake: Viscom Model: X8011 PCB Plus Vintage 8-2013 X-ray system  280mm; CNC-capable MS Windows 7 system operating system sw XMC V.SO.001 SWL Haran verification SW Calibration set X8011 XMC/SI, Grayscale/Geometric Interface connections: RJ45, USB directly on the operators panel 24" LED display Industrial keyboard with trackball XT9160-T ED Microfocus X-ray tube Open Viscom X-ray tube w. Transmission type Resolution: <4m, measured with JIMA RT RC-02 at 90kv/80A/distance 2,5mm to target X-ray tube voltage 160kV max. Including Tube Maintenance set SK9160-T ED Cathodes/5 pcs QuickCam High -resolution colour overview camera Optical overview image of inspection sample Easy pre-positioning of inspection area Displays current inspection position Rotation Module n x 360degree/horizontable rotation 320x320mm active area max load 5,0kg PCB fixture for object table for reliable fixation of PCBs. Max. sample size 360 x 420mm
SM4241

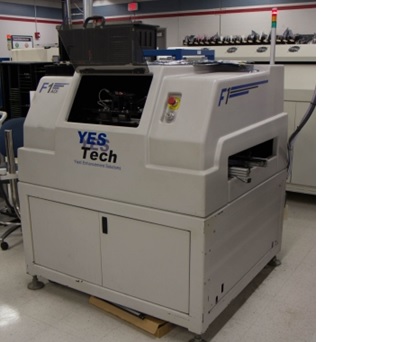

Yestech YTV-F1S AOI


SOLD
In-line AOI machine. New 2009

 System includes:

* Advance Image processing technology inspection system

* YESVision PCB Inspection Software

* Windows XP based user interface

* Multi Angle Fusion Lighting tm (RGB Led lights)

* One Top Down Color megapixel USB Thin Camera tm

* Four side angled color megapixel USB Thin Cameras tm

* Automatic width conveyor for boards up to 20 x 22"

* CAD/placement interface software

* SPC Process Reporting Software

* 1280 x 1024 Flat panel display

* Pentium PC with hard drive, DVD-RWCD, Network, USB

2.0


TE4255
Koh Young SPI 3020T

SOLD
Solder Paste Inspector Vintage 2 010. Only used in lab

SM4237
