Reflow Ovens

 Used Machine Details: Item #: Image:
IF YOU DON'T SEE WHAT YOU ARE LOOKING FOR HERE,

JUST CALL OR eMAIL US. WE MAY KNOW WHERE ONE IS.
Heller 1707 MK5 Reflow Oven

2017 Heller Model 1707MK5 Ultra Low Power & Nitrogen Consumption Reflow Oven with Semi-Circular Balanced Flow Heater Modules. 100% Forced Convection Reflow Oven with the following features and benefits:

1903 Hours of Usage. Less than 1 Shift for 1 Year.

 • 18” On Load Conveyor and 18” Off Load Conveyor with

22” Wide 42-36-18 Heavy Weave 400⁰C High Temperature Mesh Belt No Edge Rail Conveyor

 • 73" Heated Tunnel Length • 1 Internal Cooling Module with 15” of Cooling

• 14 Independent Temperature Controlled 400C°C Semi-Circular Balanced Flow “Lead Free”    Heating Zones

• Complete Computer Control System including:

•   Flat Panel Color Monitor, Keyboard & Mouse support

• Complete Software Package including:

  •  Windows based Computer    •  Windows Home Edition Software   •  Password Protection

  •  Complete KIC & ECD Profiling & Storage Software including the following features:

  •  5 Thermocouple "Real Time" profiling

 •  PID temperature control to ensure zone temperature stability to +/- 1°C

•  Signal Light Tower to indicate system status

• 4 moveable casters for easy relocation around shop floor

•  Power controlled Clamshell Hood Lift  •  Single exhaust port for easy facilitation

•  400V, 60 HZ, 3 phase,  • Left to Right Conveyor Travel

•  Floor space requirements:  142"L x 59"W x 63"H

• Enhanced Frame Design    • Breaker Over Current Protection

Inert Atmosphere < 10PPM of Oxygen Above Source Gas Purity - N2 Zone Specification (required on a nitrogen oven)

Ultra Low Consumption Nitrogen for 22” wide Tunnel Opening- Auxiliary tunnels at entrance and exit of oven and N2 plumbing in all zones. 30ppm above source gas is measured in zone 3, 20ppm above source gas in Zone 5 & 10ppm above source gas in Reflow Zone 7 with Zone Temperature above 300⁰C and Sluice gate 4mm above mesh belt. Add Hula Skirting Above and Below mesh belt and Raise Tunnel floor by 25mm to reduce N2 Consumption & Reduce ppm Level. Sluice gate can pass up to a maximum of 30mm product, not while processing in low ppm mode.  Semi-Circular Balanced Flow heater modules in all zones to provide laminar flow and further reduce nitrogen consumption (required on a nitrogen oven)

Nitrogen On/Off Capability (Computer Controlled)

Open Loop Oxygen PPM Monitoring System with Multiplexer (3 Multiplexer Sampling Ports in Zones 3, 5 & 7)

 Battery Back-Up of Edge Hold Conveyor & Controller

High Temperature Option for 400°C Max Temp

Class 10,000 Clean Room Operation

Windows Professional Edition Software

ECD / Heller Industries CPK Monitoring & Profiling System Integrated into the Heller Reflow Oven

EM Original List Price: $153, 395.00

Original Sell Price: $92,271.00



 		 OV4741
JUKI RS-800

SOLD
 8 zone reflow oven. 2012 vintage, very clean and in good operating condition. 480 volt, 64 KW.
      		OV4715
M8 8 Zone Reflow Oven


SOLD

 8 zone lead free oven. Purchased oven in 2017 and used it for less than a year.
    		SM4325
Novastar 1800HT Conveyor Reflow Oven

SOLD		 18” Conveyorized reflow solder oven with 50" (1270mm) long heating tunnel for low to medium volume surface mount assembly. 220 volt, 50/60 hz, 70 amps
    		SM4329
Heller 1809 MKIII Reflow Oven

SOLD		 Low hour 9 zone oven with mesh belt and edge rail. Hew in 2012 and in excellent condition.  Has only 8658 hours. 480 volt, 3 phase
  		SM4325
Heller 1707 MK III Reflow Oven with Nitrogen

SOLD		 Under 1,000 hours on this 7 zone reflow oven. Has edge rail only, no mesh belt and nitrogen. New 8-2012. Was only used in a semiconductor manufacturer’s clean room with SAC 103 solder. Is in like new condition.  480 volt, 3 ph. 100 amps. S/N 0812P5-B7NGS-89047-03. I have available an On-Site nitrogen generator with the capacity to support this machine.

  		SM4320
Dymax UV Curing
SOLD		 Dymax IP10018A Cure Conveyor Systems SM4311 Soon
Heller 1809 Reflow Oven


SOLD		 2013, low hour oven with  9 zones, Right to left oven with mesh belt and edge rail. 13,615 hours
    		SM4296

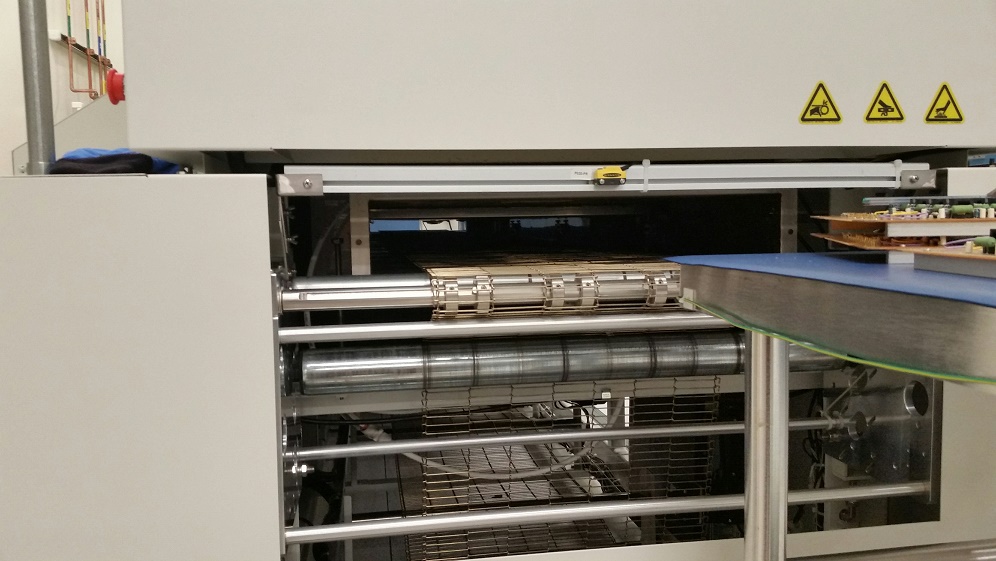

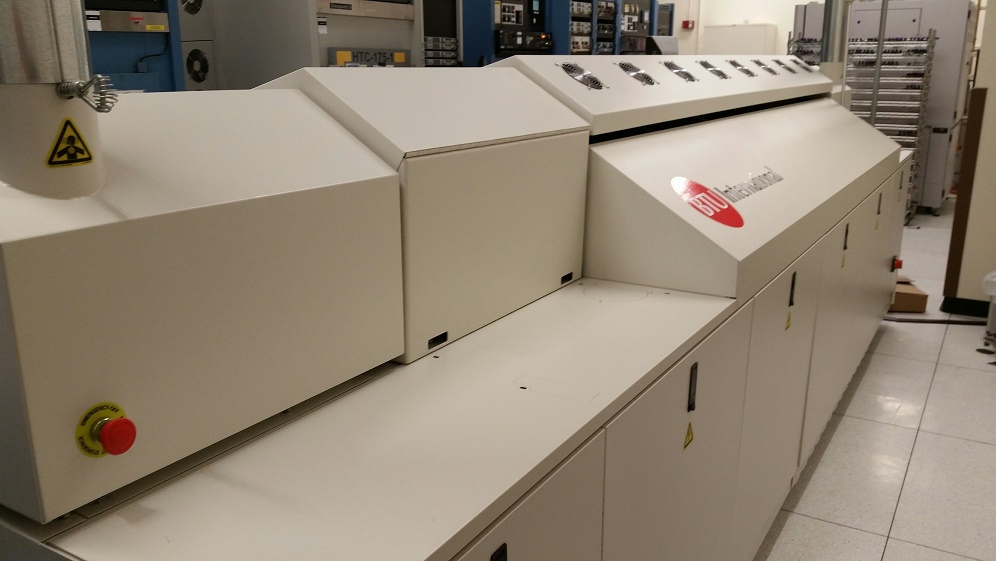

BTU Pyramax 100N

SOLD		 New 2012, 18 inch mesh belt only, no edge rail,

SM4292
Rehm Model: SMS-V6-N2-B2600/50-460 DUO

PARTS ONLY

 Many parts are available for this oven.

 SM4107
Vitronics XPM 3i 820 with Nitrogen
SOLD



New in 2012. Has 8 heat and 2 cooling zones. Autoset profile/recipe generator

•350°C maximum setpoint temperature

  		4127
Heller 1912 EXL

SOLD
 12 Zone Heller reflow oven. 480 volts, 55 amps max.  New July, 2005. Will not be available until mid July, 2016
    		SM4118
